Download the catalogue

Innovative. Automatic. Multitarget.

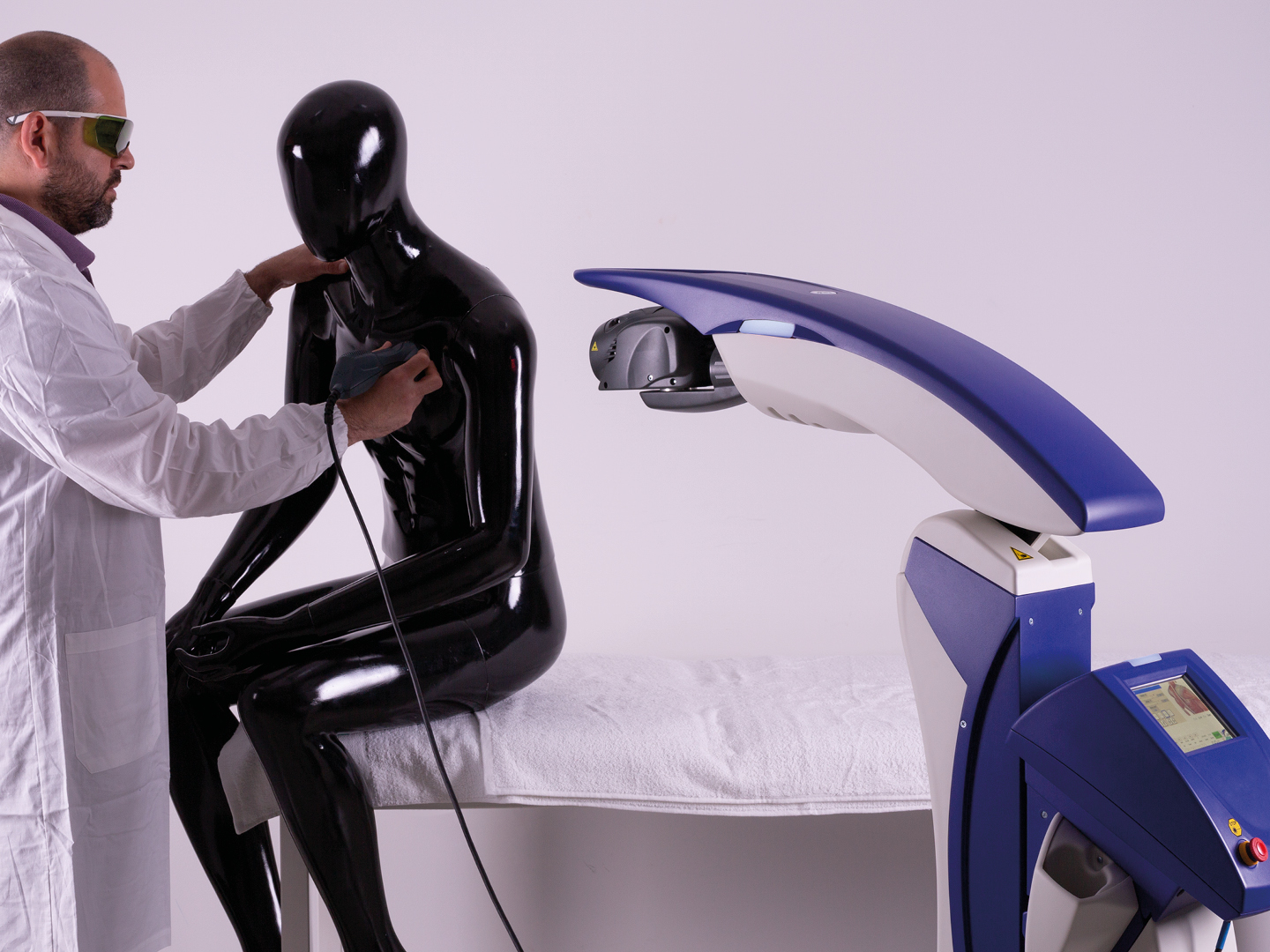

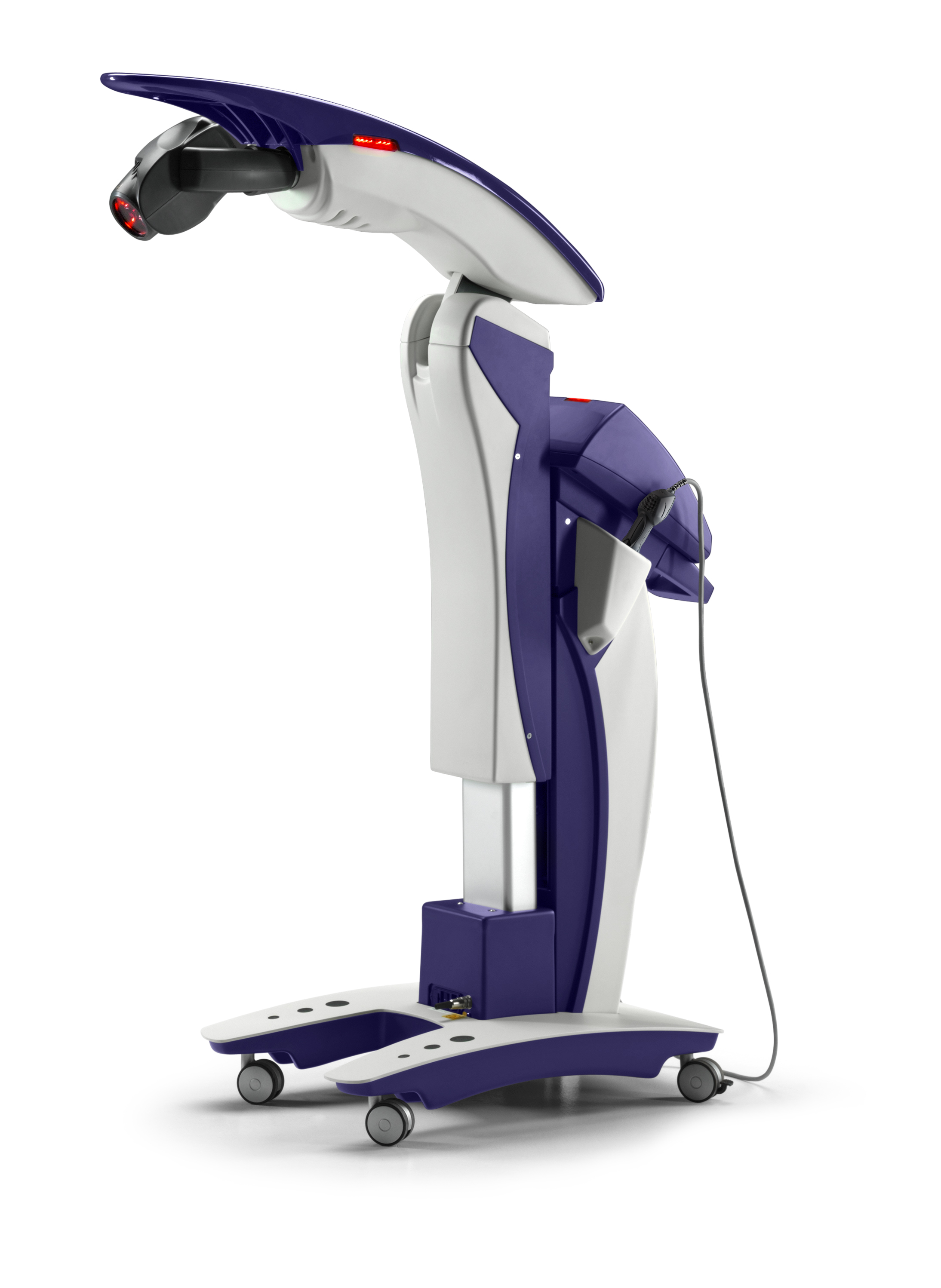

M6 enables the automatic execution of MLS® Laser Therapy: the movement of the column, of the arm and the rotation of the head with its 5 robotised directions, allow the multi-diode optical group to position itself perfectly in the area to be treated of any part of the body.

Testo a Destra

MLS® Laser Therapy
in automatic mode

The robotic solution allows combining the therapeutic efficacy of the MLS® synchronised pulse with an automatic therapeutic procedure which supports and facilitates the operator in his/her daily activity. The wide range of movements also enables adapting to therapeutic needs, allowing the patient to be treated in various positions, sitting or lying down.

Testo a Destra
Immagine 60%/Testo 40%
M6 Multitarget

Treating large areas
simultaneously

The multi-target application mode with bustrophedic (bi-directional) scanning, the "Greek" way, allows covering large treatment areas in a homogeneous manner and in a short time.

Technical characteristics
  • Robotized optical group with 3 MLS® sources with power up to 3.3 W - Peak Power 3 x 25 W
  • Target Area ø 5 cm highlighted by high-efficency red-light LEDs
  • Handpiece with optical group composed of MLS® with power up to 1.1 W - Peak Power 25 W
  • Target Area ø 2 cm highlighted by high-efficency red-light LEDs
  • High resolution LCD color touch screen user interface
  • Simultaneous management of two independent channels
  • 4 treatment modalities:
    A) specific pathologies
    B) pain management
    C) anti-edema
    D) biostimulation
  • Possibility to customize every treatment parameters
  • MLS® modulation in CPW and FPW mode (Synchronized emission of Continuous Pulsed Waves and Frequenced Pulsed Waves)
  • Modulation frequency from 1 to 2000 Hz with 1 Hz steps
  • Power level 25%, 50%, 75% and 100%
  • Fixed duty cycle at 50% or variable
  • Treatment duration from 1” to 99’59” with 1” steps
  • Automatic calculation of the emitted energy according to the settled parameters

ALARMS AND SAFETY FEATURES

  • Laser emission warning light
  • Interlock
  • Acoustic signal selectable by operator
  • Date and time
  • Password to operate the device
  • Language option
  • Ready to be connected to the remote laser emission signaling device

INCLUDED ACCESSORIES

  • Nº 2 Laser Safety goggles

SIZE AND WEIGHT

  • 106 x 43 x 154 cm
  • 43 Kg

POWER SUPPLY

  • 85/110VA 100/240Vdc
Equipment and security alarms
  • Lampada di avvertimento di emissione Laser
  • Interlock
  • Segnale acustico impostabile dall’operatore
  • Datario e orologio
  • Password per la messa in funzione del dispositivo
  • Cambio lingua
  • Predisposizione al collegamento di ripetitore di segnale emissione Laser
  • Nº 2 occhiali protezione laser
Specifications
  • Dimensioni: 68 x 42 x 158 cm
  • Peso: 43 Kg
  • Alimentazione: 85/110VA 100/240Vdc
Testo a Destra

"My trump card"

"Every day I come to work and I feel I have my trump card with me. The more we offer patients this therapy, the more there are patients who want it. We are getting increasingly positive responses from patients and the way we are practicing orthopaedics has changed".

Dr. Ronald Lederman - Orthopedic Surgeon
Lederman Kwartowitz Center for Orthopedics & Sport Medicine - Michigan, USA

Invest in the well-being of your patients
Calculate your ROI

How many patients do you examine every week with problems with muscles, tendons, ligaments, and joints?
How many of them could you effectively treat with laser therapy?
Calculate the return on investment for an ASA device and contact us for more information.

Calculate your ROI
Patients Per Week treated with MLS® Laser Therapy
Avg. Number of treatments
(average between 6-8 for patient)
Price for one MLS® Laser Therapy treatment
Additional income per Single Patient thanks to MLS® Laser Therapy

Additional weekly income thanks to MLS® Laser Therapy

Additional monthly income thanks to MLS® Laser Therapy

Additional yearly income thanks to MLS® Laser Therapy

Purchase price for the MLS® Laser Therapy device
Patients needed to reach the break-even point / re-buy the device

Needed weeks to re-buy the device

Tutto Schermo
MLS® Laser Therapy

MLS® Laser Therapy

MLS® Laser Therapy comes from ASA’s scientific research to overcome the limits of traditional laser therapy and at the same time to exploit the advantages of low and high power through a patented quality impulse.

Discover MLS® Laser Therapy
