Targeted treatment.

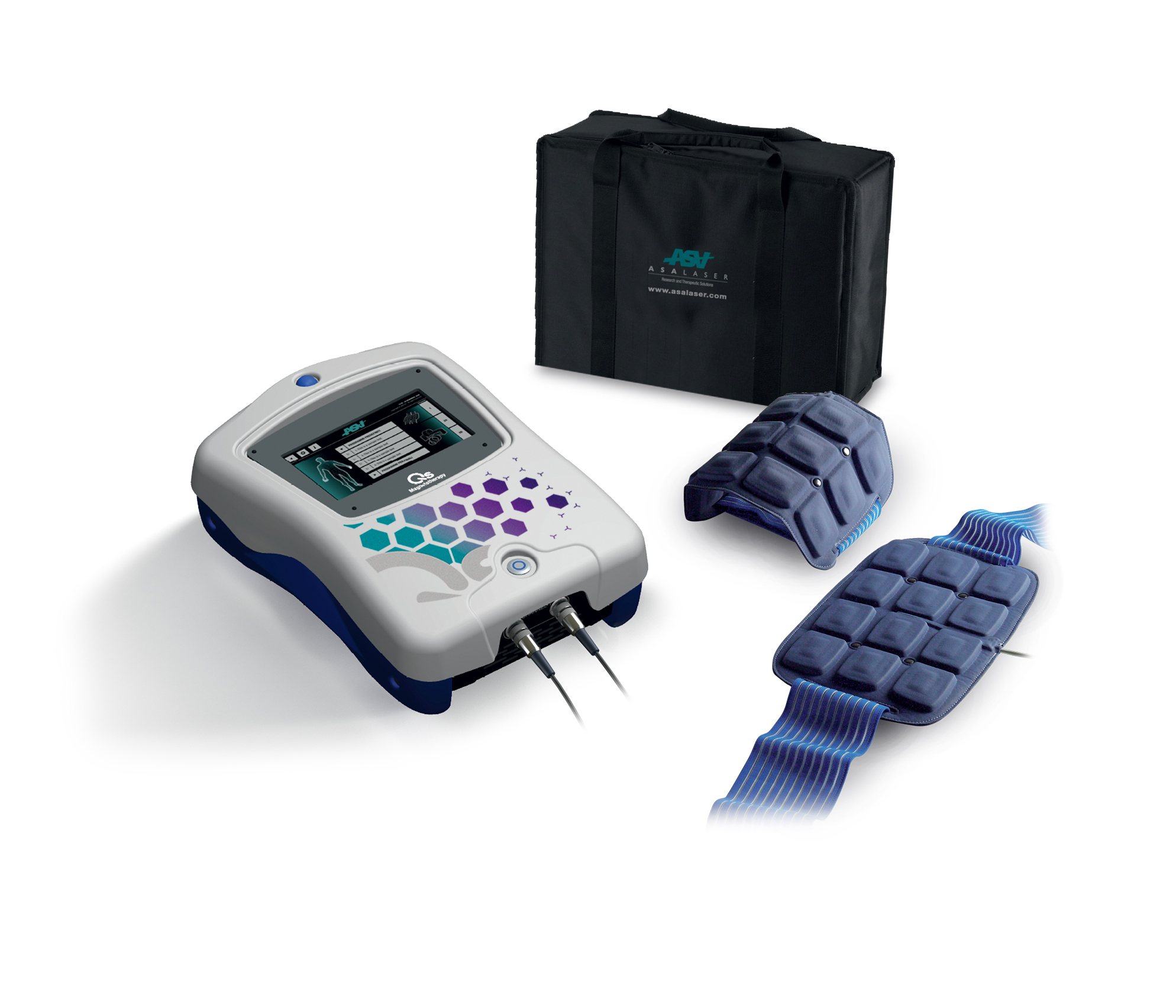

Easy Qs is a practical and portable device, easy to use and intuitive, particularly suitable for targeted treatment. The Flexa applicators have a flexible shape so they can be adapted to all the body surfaces and maintain magnetic field emission constant and uniform.

Easy Qs generates pulsed magnetic fields at extremely low frequency (ELF - Extremely Low Frequency) and at low intensity, which are able to pass through the body, acting on all tissues (muscle, bone, nerve, epithelial, etc.). Effective even in depth, they are not invasive and do not cause pain.

Testo a Destra
Immagine 60%/Testo 40%
Easy Qs - Flexa Applicator

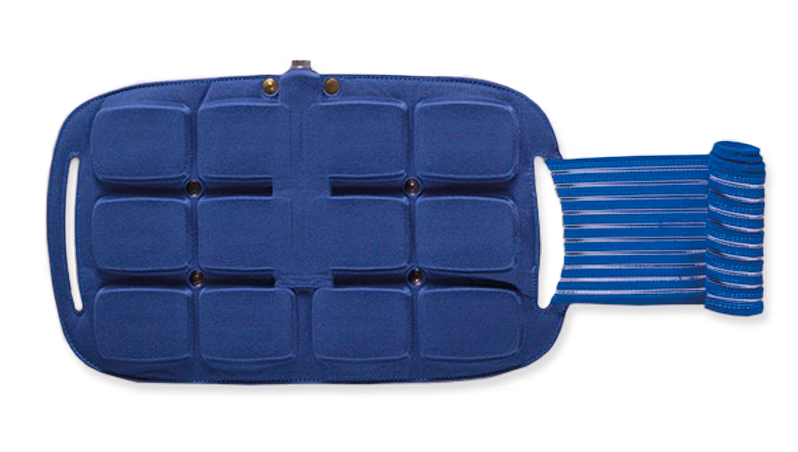

Flexa Applicators

The supplied Flexa applicators allow administering the fields perpendicularly to the application surfaces and can be activated with a vibration effect should this please the patient.

Testo a Destra
Immagine 60%/Testo 40%
Easy Qs - Settings

Easy Qs Generator

The pre-set treatment programs allow the operator to customise the emission parameters according to the disease and the clinical phase of the patient.

Technical characteristics
  • 1 channel with 2 outputs for connecting the Flexa applicators
  • Frequency from 0.5 to 100 Hz
  • Magnetic field intensity variable from 5 to 100%
  • Treatment time from 1 to 99 min or continuous
  • Pre-set, adjustable, saveable programmes
  • Backlit LCD
  • Membrane keyboard

ALARMS AND SAFETY FEATURES

  • Therapy start and therapy end acoustic signal
  • Language option
  • Machine status signals and alarms

INCLUDED ACCESSORIES

  • Carry Bag

SIZE AND WEIGHT

  • Generator: 28 x 38 x 13 (W X D X H) cm - 3 kg
  • Flexa Applicator: 36 x 21 x 2 cm (W x D x H) cm - 1,2 kg

OPTIONAL ACCESSORIES

  • Unit carrying trolley - 63 x 54 x 85 (H) cm - 17 kg
  • Portable solenoid Ø 30 cm - depth 22 cm – 6,5 Kg
  • Portable solenoid Ø 50 cm - depth 35 cm – 11,5 Kg

POWER SUPPLY

  • 100/240V±10% 50/60Hz 45-175VA max
Equipment and security alarms
  • Borsa porta strumento
  • Segnale acustico di inizio e fine terapia
  • Cambio lingua
  • Avvisi e allarmi stato macchina
Specifications
  • Generatore: 28 x 38 x 13 (L X P X H) cm - 3 kg
  • Applicatore Flexa: 36 x 21 x 2 cm (L x P x H) cm - 1,2 kg
  • Alimentazione: 100/240V±10% 50/60Hz 300VA max
  • Accessori opzionali:
    Carrello porta strumento - 63 x 54 x 85 (H) cm - 17 kg
    Solenoide portatile Ø 30 cm - profondità 21 cm - 6,5 kg
    Solenoide portatile Ø 50 cm - profondità 34 cm - 11,5 kg
Testo a Destra
Immagine 60%/Testo 40%

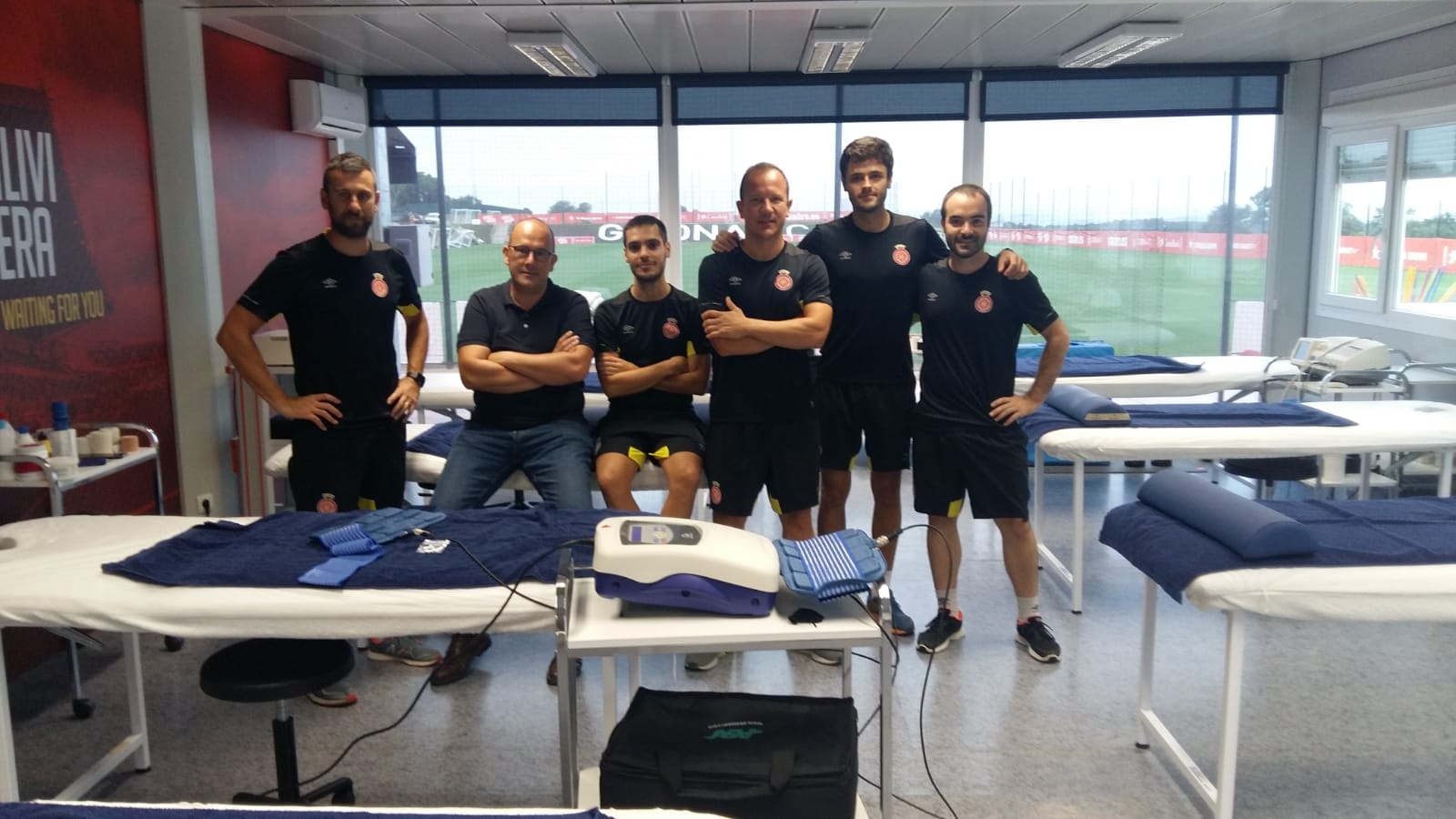

Easy Qs - Girona FC Calcio

The practicality of a transportable device

Easy Qs is at the service of the team of physiotherapists of Girona FC, the Spanish Liga Championship team. Thanks to its portability, the device also accompanies the team during its transfers.

Girona, Spain

Magnetotherapy

Magnetotherapy

The functioning of ASA Magnetotherapy, based on the scientific principles of ELF (Extremely Low Frequency 1–100 Hz) pulsed magnetic fields, is characterized by low frequency and low intensity.

Discover Magnetotherapy
