Very high power peaks.

The HIRO laser device is based on Hilterapia®, a worldwide unique therapeutic technique based on high-intensity laser emission.

Thanks to the specific patented impulse, HIRO reaches very high power peaks (3kW) with an Nd:YAG pulsed source (wavelength 1064 nm).
The high intensity obtained (up to 15,000 W/cm2 that even today cannot be reached by other laser technologies), added to high energetic impact, effectively cure even the deepest chronic lesions.
The duration and frequency of the HILT® impulse means that its use is always safe, because it constantly maintains the skin temperature below the thermal damage threshold.

Please accept statistics cookies to watch this video.
Testo a Destra
Immagine 30%/Testo 60%
Hilterapia - Safe Therapy

Safe & Effective Therapy.

Based on the Hilterapia® devices, HIRO offers validated EU MDR protocols derived from more than 50 scientific publications:

  • Osteoarticular conditions (Osteoarthritis, Osteoporosis, …)
  • Soft tissue musculoskeletal conditions (Neck pain, Tendinopathies, Low back pain, Plantar fasciitis, …)
  • Tissue repair (Wounds, Muscle strains)
Testo a Destra
Immagine 30%/Testo 60%
HIRO - User friendly Display

User Friendly.

Each protocol is graphically supported by sequences of images and videos precisely showing target areas and location of the pathology thanks to a 10" touch screen display for better visibility and user-friendliness.

Testo a Destra
Immagine 30%/Testo 60%
HIRO - customizable programs

Fully-customizable protocols.

Treatments are fully-customizable, ensuring tailor-made treatments to all patients, in total safety and have been optimized to be performed in a faster modality.

Testo a Destra
Immagine 30%/Testo 60%
HIRO electronic control

Performance optimization.

Auto-calibration of the laser emission based on an electronic-controlled system allows for:

  • Optimization of the power delivered to the tissues
  • Maximisation of safety
  • High quality emission over time
Please accept statistics cookies to watch this video.
Testo a Destra
Immagine 60%/Testo 40%
Manipolo standard Hilterapia

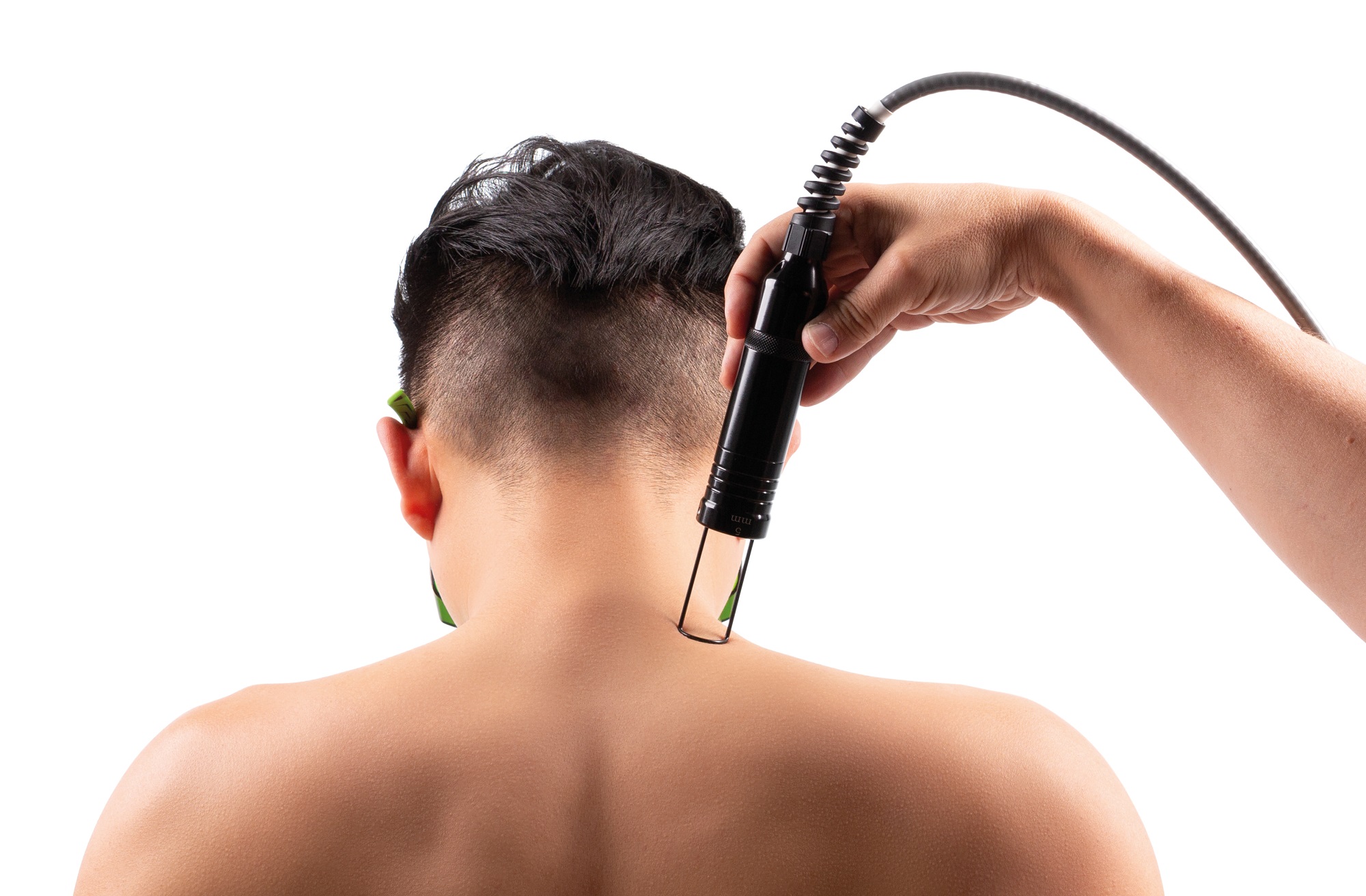

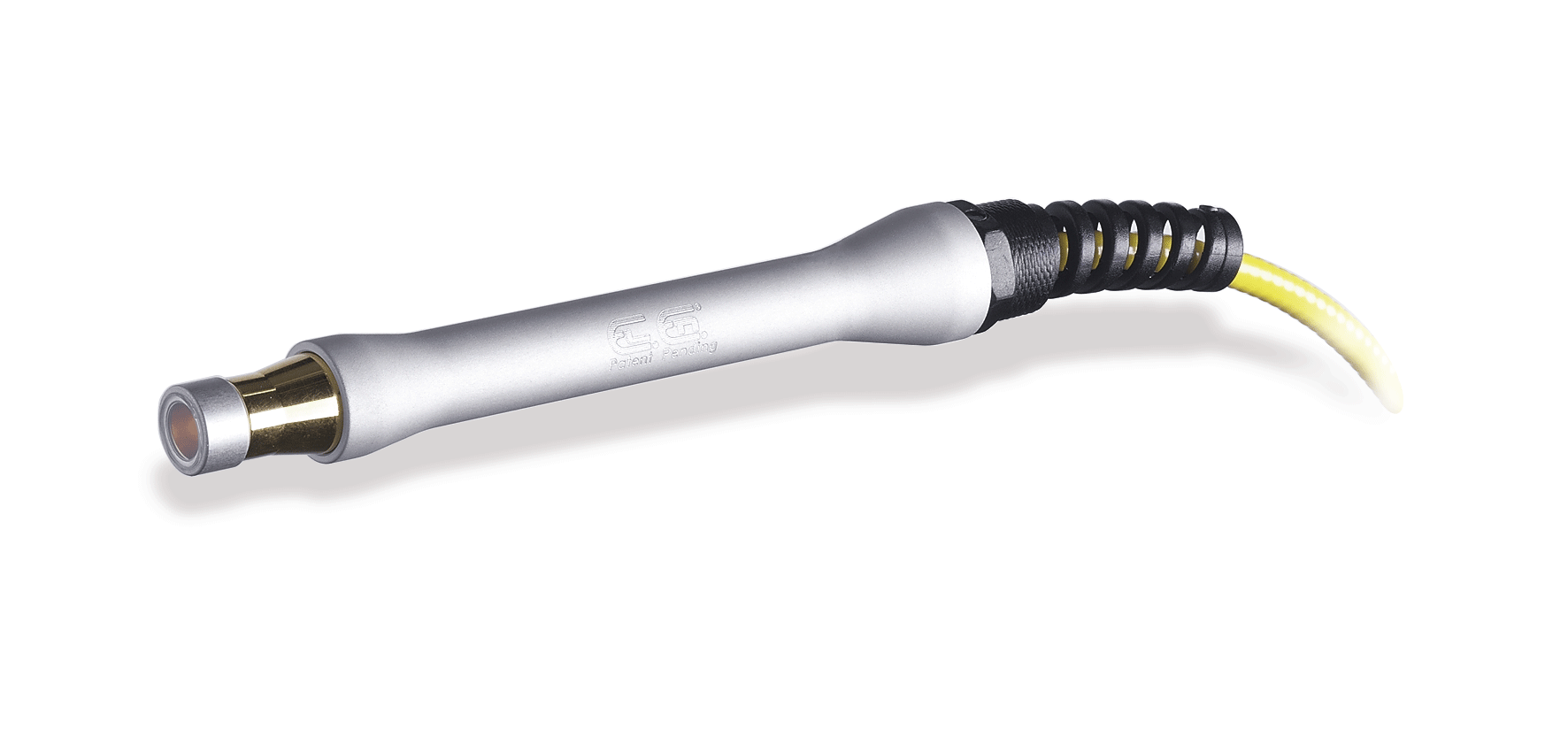

Therapeutic handpiece

Standard handpiece for pain therapy featuring a spacer for the correct energy delivery on the treatment area.
Intensity 15.000 W/cm2

Testo a Destra
Immagine 60%/Testo 40%

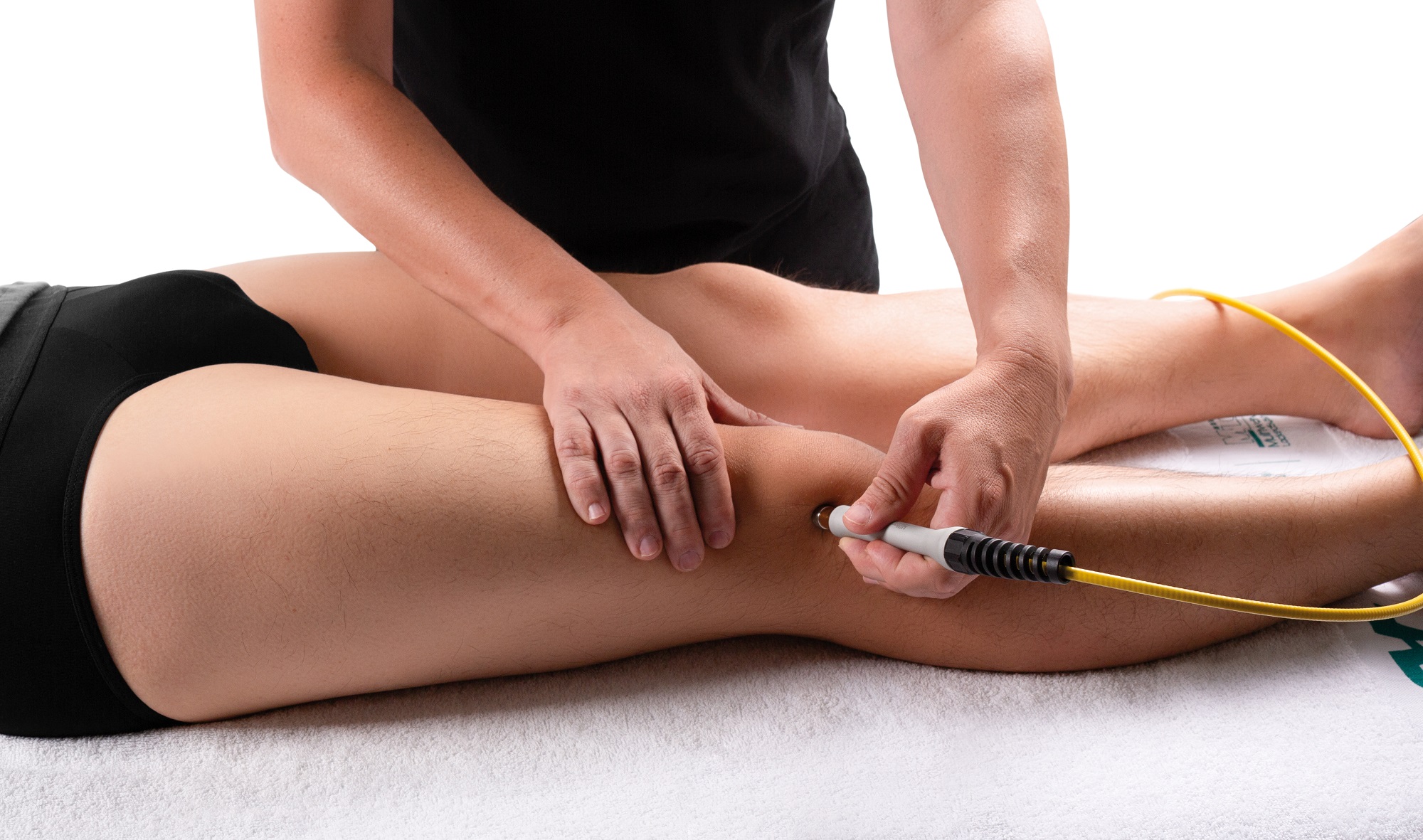

Manipolo DJD Hilterapia

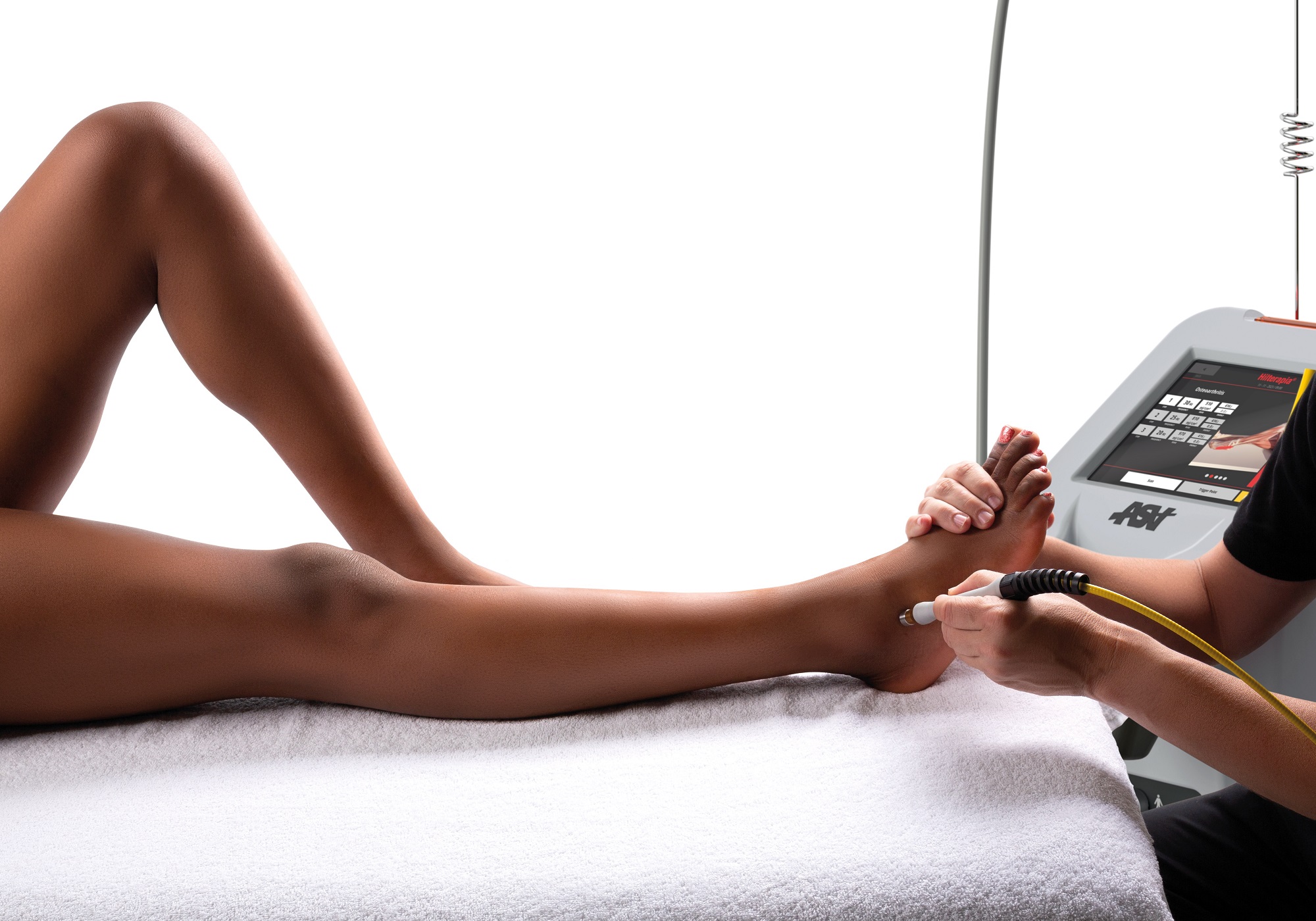

DJD handpiece. Regenerative Power

Ideal for regenerative therapy where the primary goal is to maximize the transfer of the Hilterapia® pulse to the target tissues. Patented.
Intensity 15.000 W/cm2

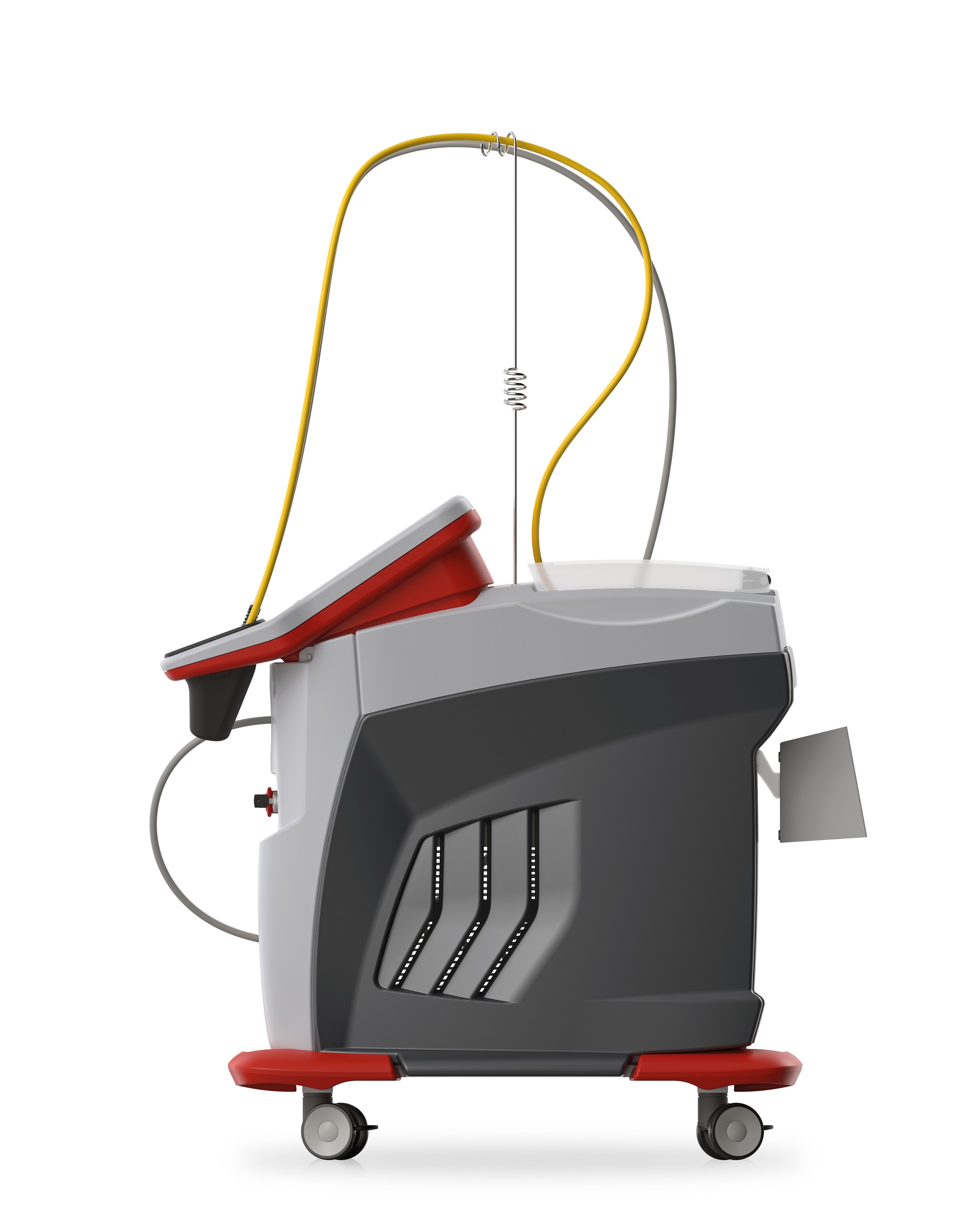

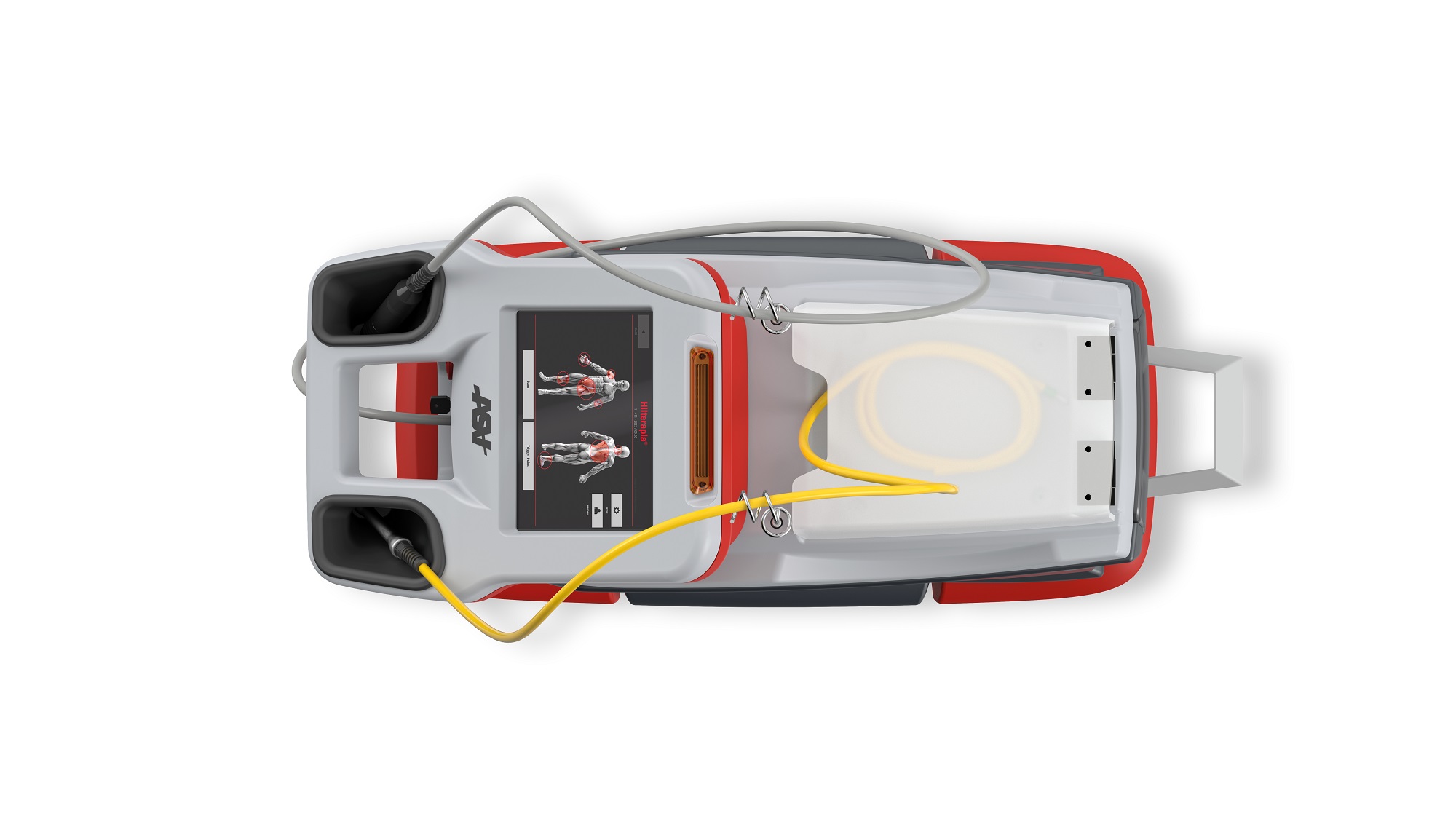

Technical characteristics
  • Laser system featuring the patented Hilterapia® pulse
  • High Intensity pulsed Nd:YAG laser source
  • Peak Power (max): 3,000 W
  • Intensity (max): 15,000 W/cm²
  • Energy per pulse (max): 350 mJ
  • Frequency: 10-30 Hz
  • Average power (max): 10.5 W
  • Fluence (max): 1780 mJ/cm²
  • Pulse duration: ≤ 100 μs
  • Auto-calibration of the laser emission to optimize the power delivery to the tissue
  • User interface with 10” graphic color touch screen display
  • Fully-customizable and retrievable programs


  • Acoustic signal of laser emission during the therapy
  • Date and time
  • Language option
  • Machine status signals and alarms
  • Emergency stop button for laser emission
  • Laser emission warning light
  • Interlock
  • Footswitch emission control


  • Ø5 mm handpiece for pain therapy
  • Patented DJD handpiece for regenerative therapy
  • N.2 fiber holders
  • N.2 laser safety goggles
  • N.1 footswitch emission control pedal


  • 115/230V 50-60Hz 1840 VA
  • 37 x 75 x 132 (W x D x H) cm
  • 52 Kg


  • 230V 50-60Hz 1840 VA
Equipment and security alarms


Hilterapia® is a therapeutic technique based on an exclusive high-intensity pulsed Nd:YAG laser emission (up to 15,000 W/cm2) which, while functioning in absolute safety, allows you to obtain an effective therapeutic action in depth.

Discover Hilterapia®
